Collect events from Segment

Start collecting events from Segment via webhook.

View as Markdown

Segment can forward every tracked event to Krenalis through a webhook destination. This setup keeps your data pipeline unified and ensures that each event reaches Krenalis in a consistent, structured format—ready for storage, enrichment, and activation.

How it works

  1. Add a webhook destination in Segment. Create a webhook connection in Segment that sends all your events to Krenalis in real time.
  2. Filter events in Krenalis. Optionally configure filters that apply before event processing to control which data is stored in your warehouse.
  3. Ingest and store events. Krenalis receives the incoming payloads, validates their schema, and loads them into your warehouse for unification and analysis.
  4. Activate your data. Use these events in Krenalis Activation to build audiences, trigger workflows, and sync enriched data to external tools.

Steps

If you've already added a source connection for the same Segment account, you can reuse it and start with the Debug the events step.

1. Connect Krenalis with Segment

  1. In your Krenalis workspace, open the Sources page.
  2. Click Add a new source ⊕, then select the Segment card.
  3. Click Add source....
  4. Click Add to complete the connection.
  5. On the connection page, click Settings → Event write keys and copy the event write key and the endpoint URL

2. Add a webhook on Segment dashboard

Then proceed to create a webhook destination in Segment:

  1. From the Segment dashboard, go to Connections → Destinations.

  2. Click Add destination, search for Webhook, then select it.

  3. Click Add destination on the webhook page.

  4. Choose the data sources to send to Krenalis, and enter a destination name and click Next.

  5. Enter a name for the destination and click Create destination.

  6. In Mappings, click New Mapping, select Send, and set:

    Field Value
    URL The endpoint copied earlier.
    Method POST
    Batch Size 500
    Headers Click Add Mapping Field, enter Authorization as the header name, and Bearer EVENT_WRITE_KEY as the value, where EVENT_WRITE_KEY is the write key you copied earlier.
    Enable Batching Yes

    Refer to the following screen:

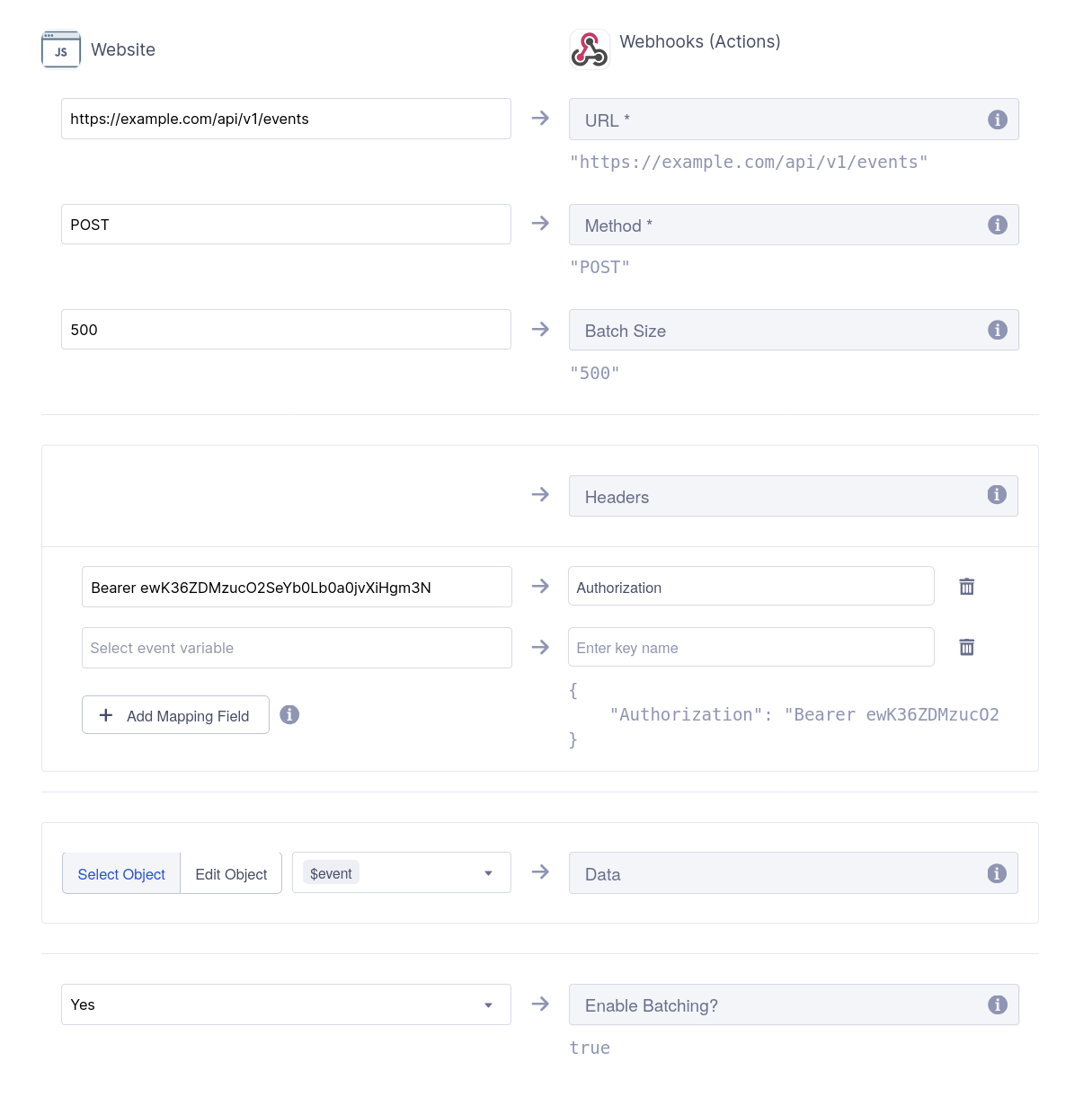

    Segment webhook destination configuration example

  7. Save and enable the pipeline.

3. Debug the events

Use the Event debugger in your source connection in the Krenalis Admin console to verify that events are received correctly.

  1. In Krenalis, open your source connection.

  2. Go to the Event debugger tab.

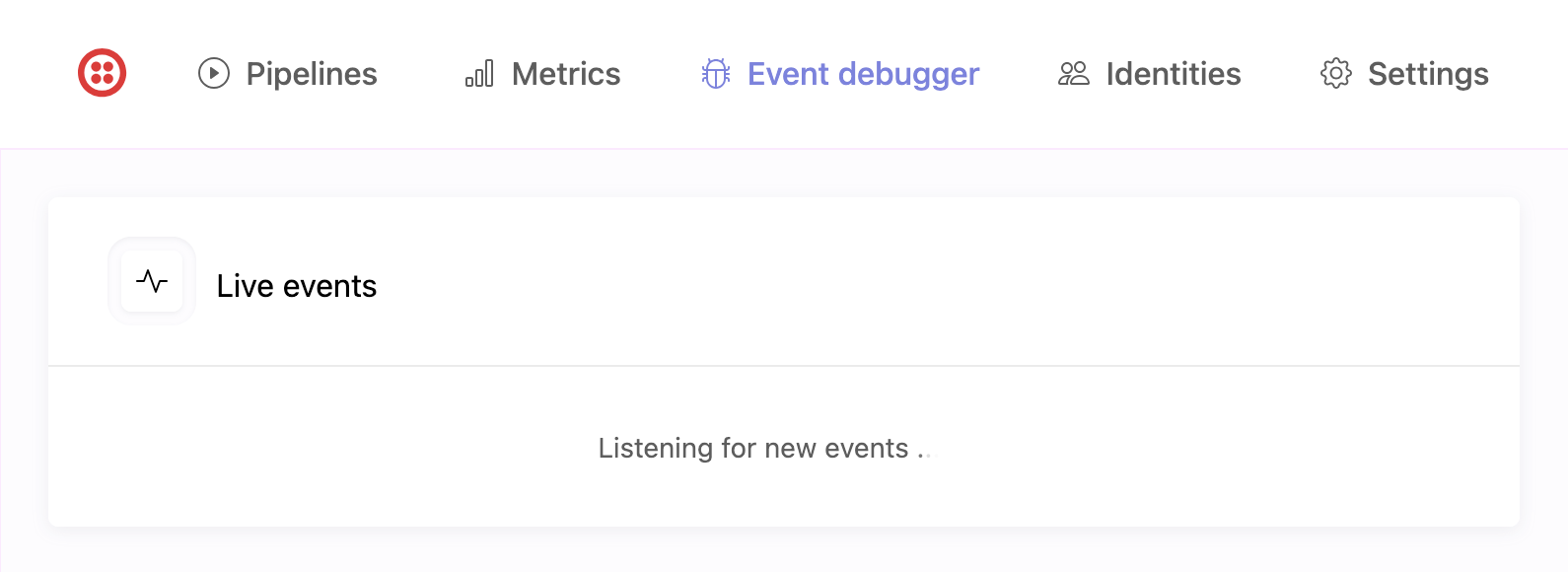

    Krenalis Event debugger showing Segment events

    It shows a live sample of the most recent events received for this source connection. Use it whenever you need to quickly confirm that events are arriving as expected and to inspect their contents in real time.

  3. Generate a track event in Segment. The event should appear within a few seconds:

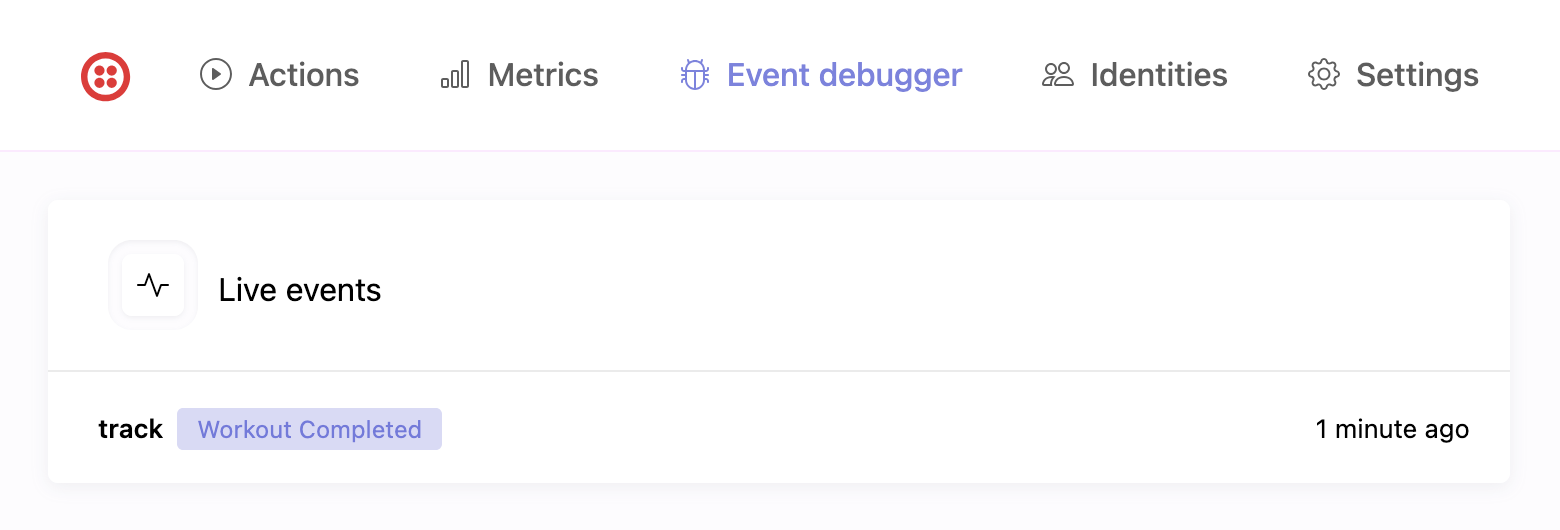

    Krenalis Event debugger showing Segment events

  4. Click the collected event in the Event debugger list to view its JSON payload, which contains the data sent by Segment.

    The following example shows what a typical event payload looks like:

    Example — The following JSON is a sample event payload:

    {
    "anonymousId": "b27c5d9f-92a7-4d30-b21a-4df21a6872c2",
    "context": {
        "browser": {
            "name": "Safari",
            "version": "17.2.1"
        },
        "ip": "172.91.24.57",
        "library": {
            "name": "krenalis.js",
            "version": "1.0.0"
        },
        "locale": "en-US",
        "os": {
            "name": "macOS",
            "version": "14.5"
        },
        "page": {
            "path": "/dashboard",
            "title": "User Dashboard",
            "url": "https://app.example.com/dashboard"
        },
        "screen": {
            "width": 3024,
            "height": 1964,
            "density": 2
        },
        "session": {
            "id": "1766272512048"
        },
        "timezone": "America/Los_Angeles",
        "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 14_5) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/17.2.1 Safari/605.1.15"
    },
    "event": "Workout Completed",
    "messageId": "f9189a52-b37b-4d7d-9f2d-08b91d85fa9c",
    "properties": {
        "workout_type": "Cardio",
        "duration_minutes": 45,
        "calories_burned": 380,
        "device": "Smartwatch"
    },
    "receivedAt": "2025-10-20T16:15:24.340Z",
    "sentAt": "2025-10-20T16:15:24.327Z",
    "originalTimestamp": "2025-10-20T16:15:23.992Z",
    "timestamp": "2025-10-20T16:15:24.010Z",
    "type": "track",
    "userId": "703991475"
}

    If no event appears after a few seconds:

    • Check your application logs for errors.
    • Ensure your event write key and endpoint are correct.

💡 See the Event spec for full details on the event schema.

4. Add a pipeline to import events

  1. Click on the Pipelines tab of the connection for Segment.
  2. Next to the Import events into warehouse pipeline, click Add pipeline....

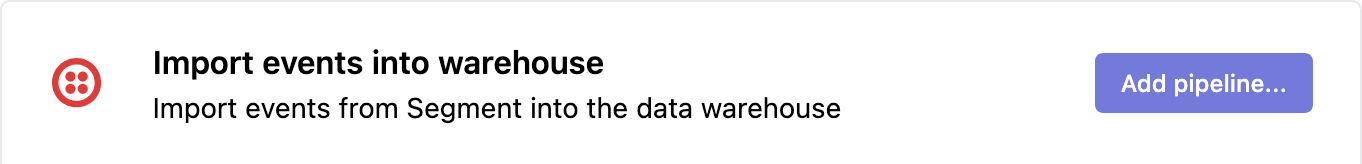

Import events into warehouse

This is an "Import events" pipeline type, which transfers events received from Segment into your warehouse.

Each pipeline defines how and when events flow from Segment into the warehouse. You can add multiple pipelines per connection to handle different data segments or destinations.

5. Filter events

If you don't want to import all events from Segment, define a filter in Krenalis to control which events are imported into the warehouse. If no filter is set, all events from Segment will be imported. For more information on how to use filters, see the Filters documentation.

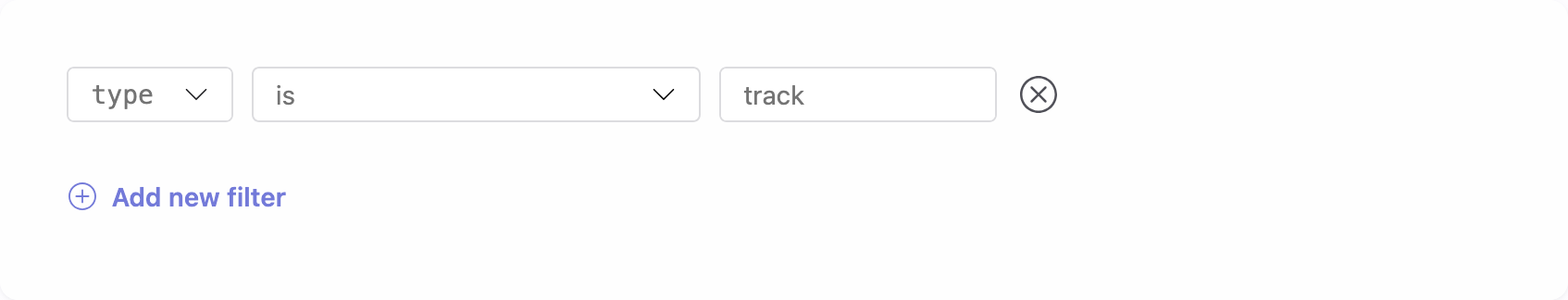

Filter events

In the example above, only track events are imported.

6. Save your changes

When you're done, click Add (or Save if you're editing an existing pipeline).

The new pipeline will appear in your source connection and can be edited or disabled at any time.

Pipelines

Once saved, the new pipeline appears in the pipelines list for Segment. From here, you can monitor imports and adjust filters. Each pipeline defines how and when events flow from Segment into your warehouse.

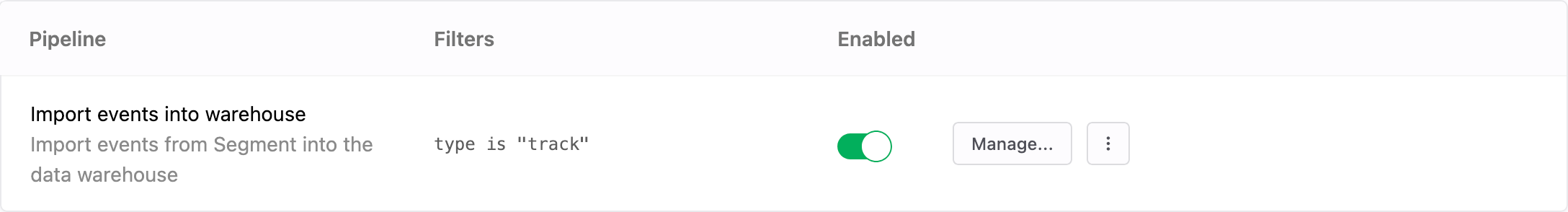

Pipeline to import events
Column Description
Pipeline Name and description of the pipeline.
Filter Condition that determines which events are processed. If not set, all events are included.
Enable Switch to activate or deactivate the pipeline. When disabled, no events are processed.
Manage Edit settings such as filter.
⋮ (More) Additional options, such as deleting the pipeline.
